STANDART LIFT

NDL.5001-10 / 1000 KG

Short arm lift with a capacity of 1000 kg, designed for 3.5-ton to 5-ton narrow and short chassis vehicles. It has two separate control systems. The lift and platform are lightweight to suit these commercial vehicles. The lift performs tilt movements automatically.

  • 1000 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform

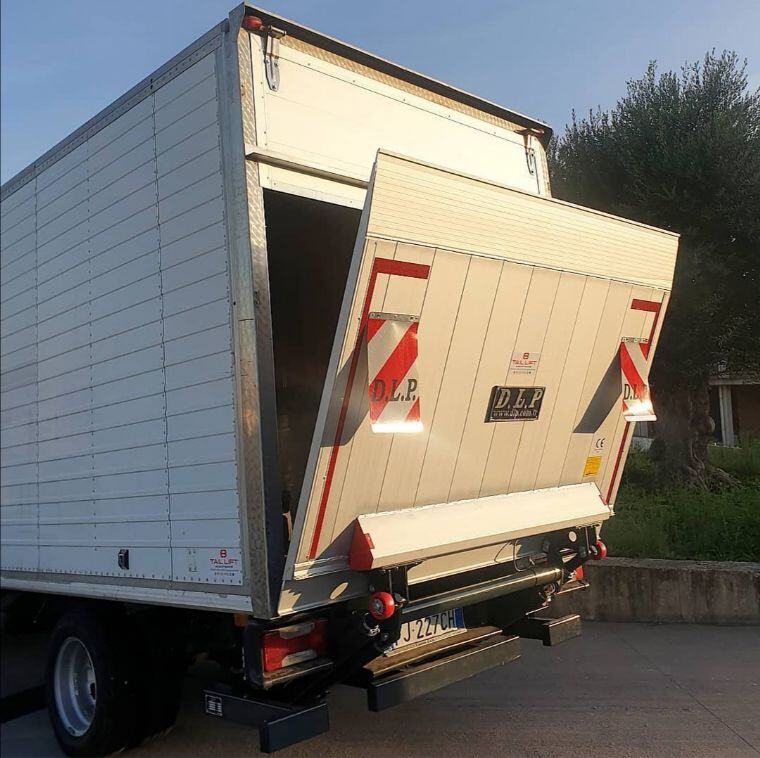

NDL 5001

ABOUT PRODUCT

High-Performance Lifting Solution

Our 1000KG capacity short arm lift is specifically designed for 3.5-ton to 5-ton narrow and short chassis vehicles. It features two separate control systems. The lift and platform are designed to be as lightweight as possible for these commercial vehicles, and the tilt movement is performed automatically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Truck, externally mounted, van model hanger bracket, short load arm
  • Lift Capacity: 1000 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 120 x 120
  • Platform Type: Aluminum
  • Platform Size: 2.200 x 1.700 mm / 2.400 x 1.800 mm / 2.500 x 1.800 mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 700mm
  • Maximum Lifting Height: 1200 mm
  • Maximum Lowering Height: 470 mm
  • Chassis Width: 610 mm
  • Chassis Length: 2010 mm
  • Lift Weight: 232 kg
  • Platform Weight: 105 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 710 - 910 mm
