STANDART LIFT

NDL.5002-20 / 2000 KG

Short arm lift with a capacity of 2000 kg, designed for narrow chassis trucks and vans. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically.

  • 2000 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform

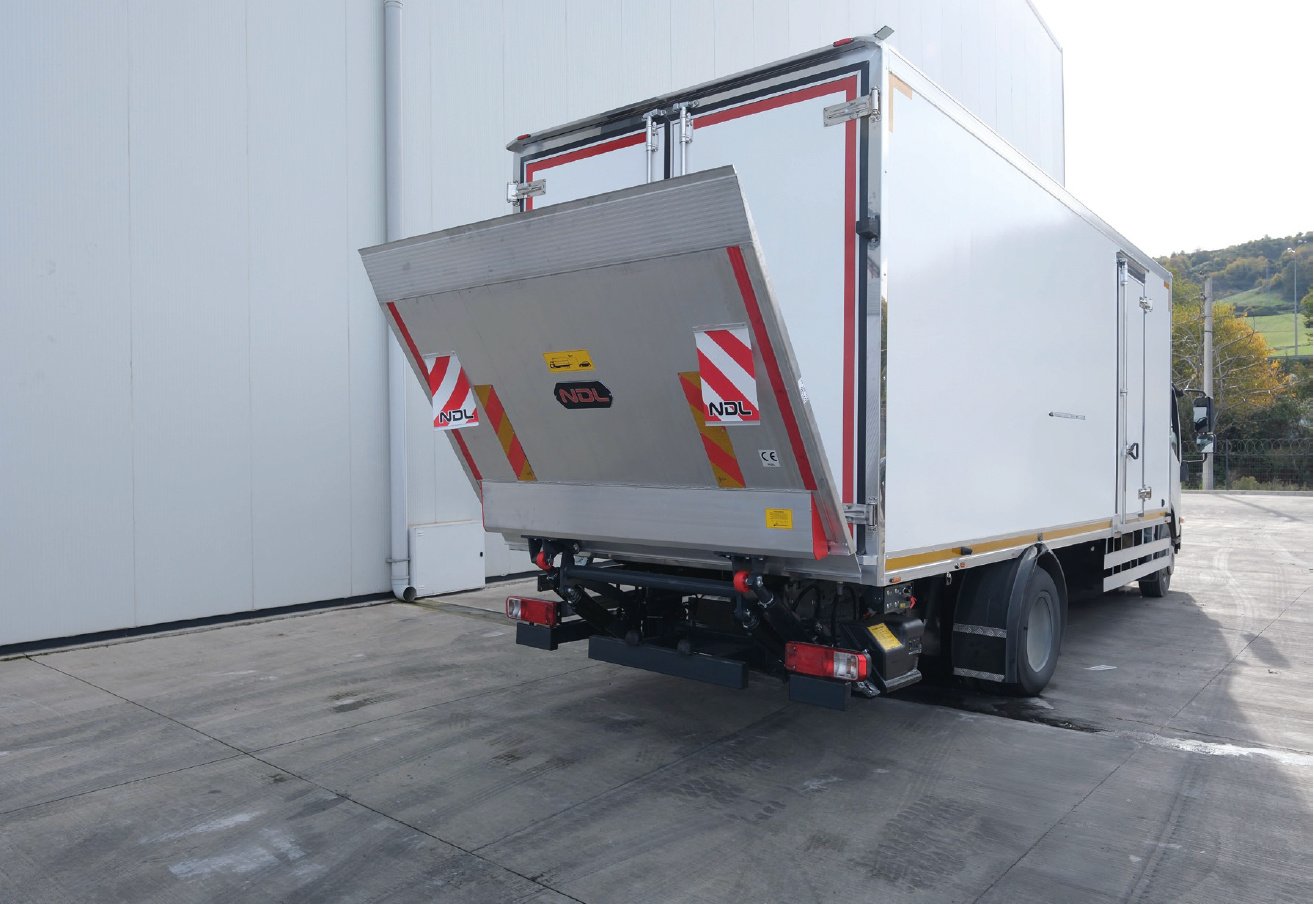

5002-15 NDL COMP

ABOUT PRODUCT

High-Performance Lifting Solution

Our 2000KG capacity short arm lift is specifically designed for narrow chassis trucks and vans. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Standard short arm
  • Lift Capacity: 2000 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 140 x 140 ST52
  • Platform Type: Aluminum
  • Platform Size: 2.200 x 1.700 mm / 2.400 x 1.800 mm / 2.500 x 1.800 mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 700mm
  • Maximum Lifting Height: 1200 mm
  • Maximum Lowering Height: 450 mm
  • Chassis Width: 630 mm
  • Chassis Length: 2010 mm
  • Lift Weight: 365 kg
  • Platform Weight: 140 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 690 - 890 mm
