STANDART LIFT

NDL 5003-20 / 2000 KG

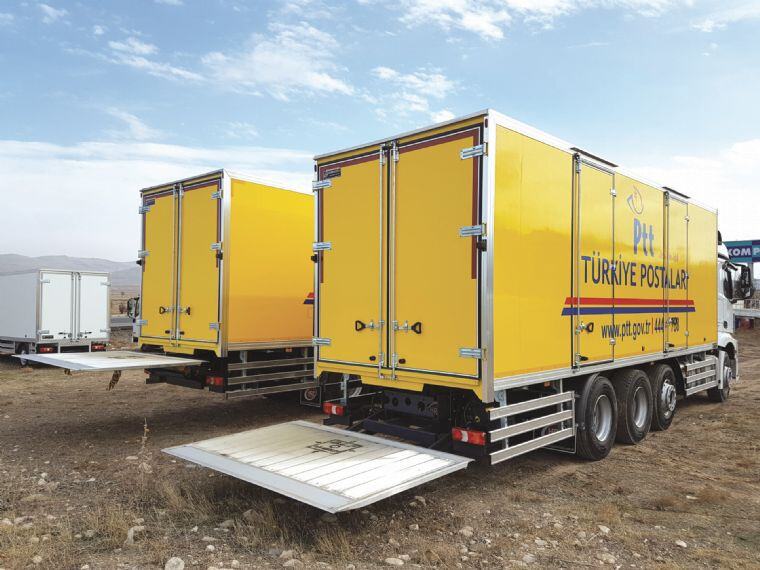

Long arm lift with a capacity of 2000 kg, designed for wide chassis trucks. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically.

  • 2000 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform
View All Products CONTACT US
NDL 5003
NDL 5003
NDL YAKIN

ABOUT PRODUCT

High-Performance Lifting Solution

Our 2000KG capacity long arm lift is specifically designed for wide chassis trucks. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Standard long arm
  • Lift Capacity: 2000 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 140 x 140 ST52
  • Platform Type: Aluminum
  • Platform Size: 2.200 x 1.700 mm / 2.400 x 1.800 mm / 2.500 x 1.800 mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 900mm
  • Maximum Lifting Height: 1400 mm
  • Maximum Lowering Height: 550 mm
  • Chassis Width: 845 mm
  • Chassis Length: 2350 mm
  • Lift Weight: 290 kg
  • Platform Weight: 140 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 780 - 980 mm
