STANDART LIFT

NDL 5005-25 / 2500 KG

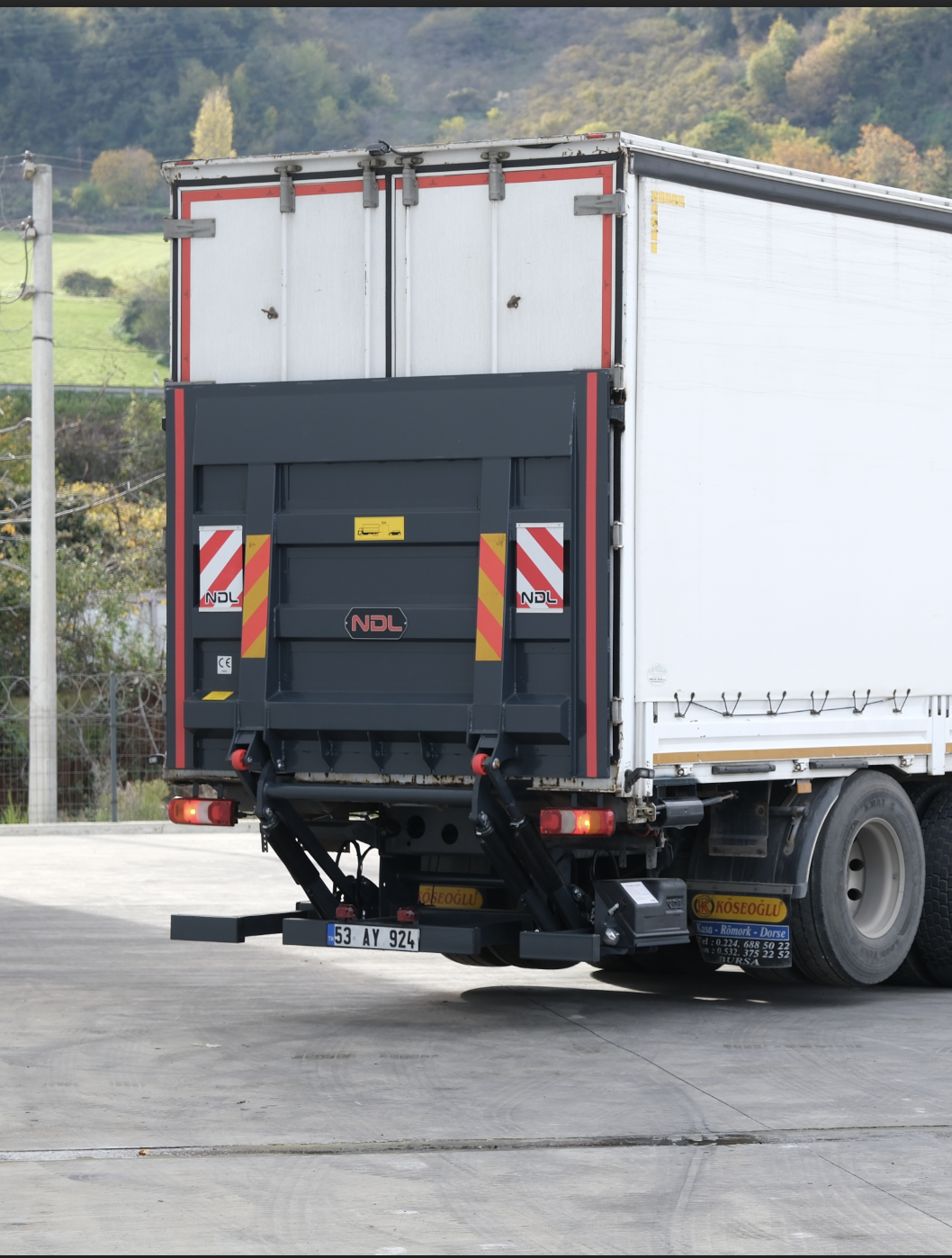

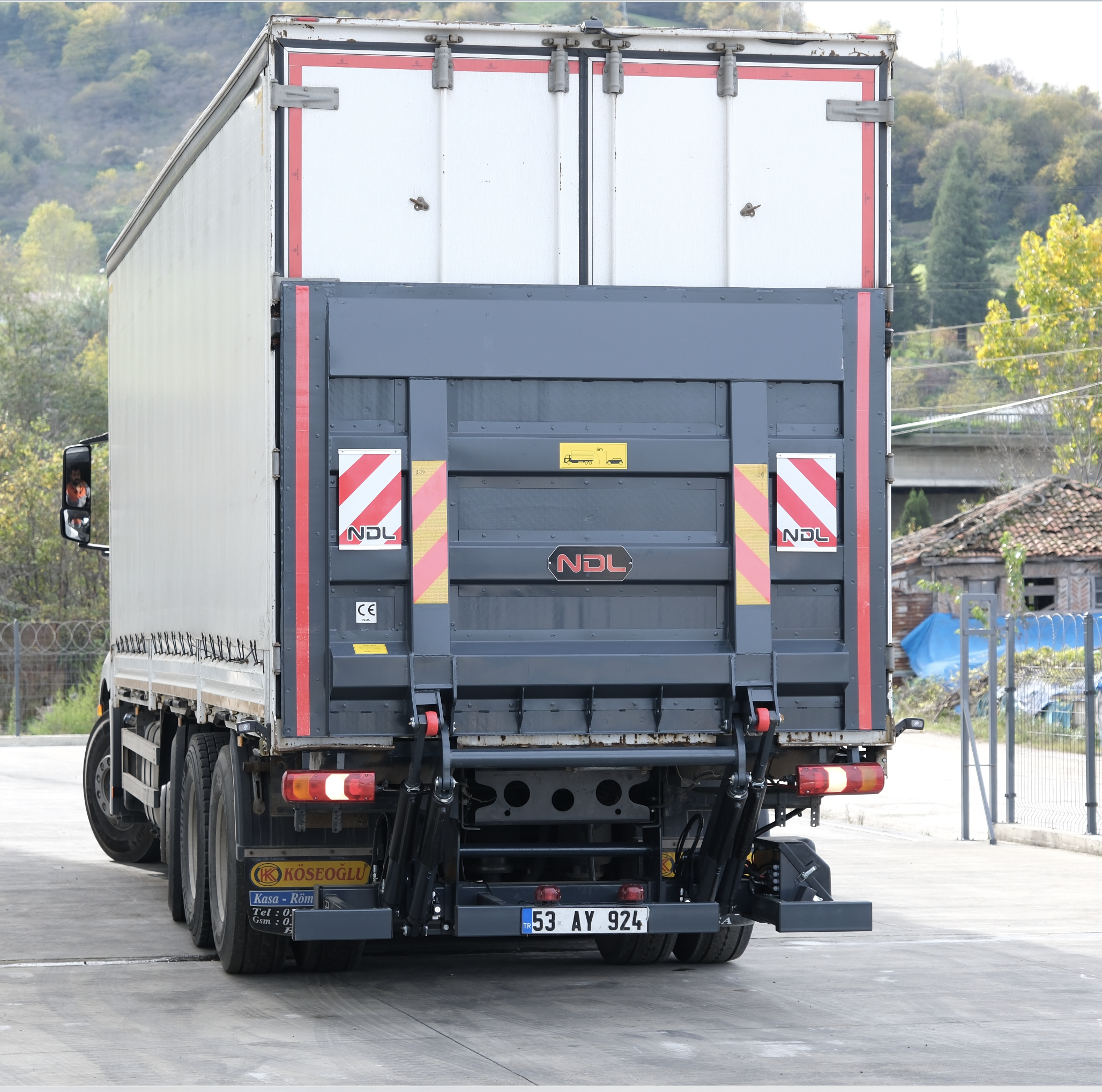

Long arm lift with a capacity of 2500 kg, designed for semi-trailers (O4 semi-trailers). The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically.

  • 2500 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform
Trailer 5005

ABOUT PRODUCT

High-Performance Lifting Solution

Our 2500KG capacity long arm lift is specifically designed for semi-trailers (O4 semi-trailers). The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Standard long arm
  • Lift Capacity: 2500 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 140 x 140 ST52
  • Platform Type: Aluminum
  • Platform Size: 2.200 x 1.700 mm / 2.400 x 1.800 mm / 2.500 x 1.800 mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 900mm
  • Maximum Lifting Height: 1400 mm
  • Maximum Lowering Height: 550 mm
  • Chassis Width: 845 mm
  • Chassis Length: 2550 mm
  • Lift Weight: 325 kg
  • Platform Weight: 140 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 1180 - 1380 mm
