SLIDER SERIES LIFTS

NDL.5006-1500/2000KG

Slider lift with a capacity of 1500 - 2000 kg, designed for semi-trailers (O4 semi-trailers) and wide chassis trucks. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically.

  • 1500 / 2000 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform

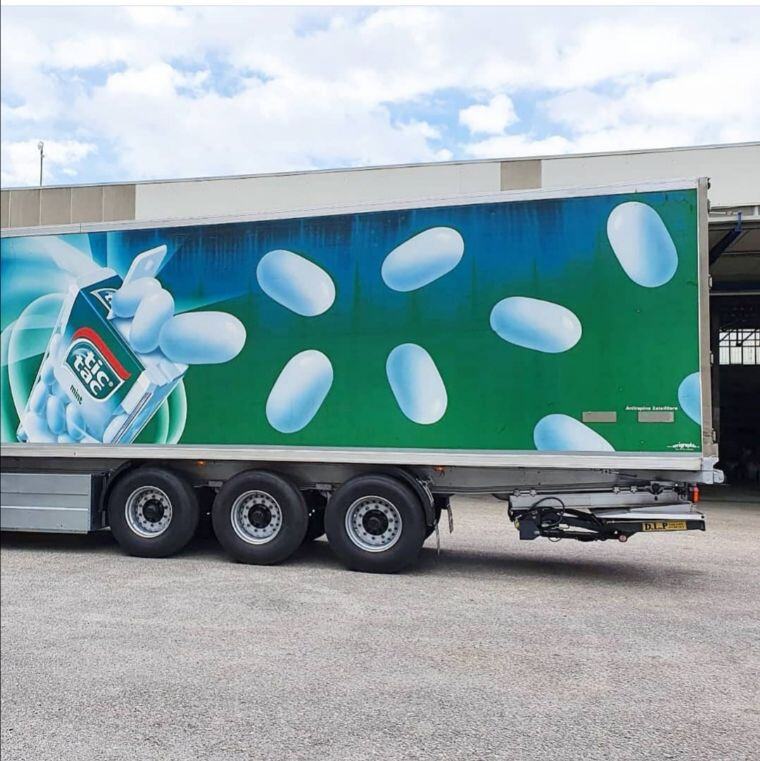

ndl 5006- 2000 kg

ABOUT PRODUCT

High-Performance Lifting Solution

Our 1500 - 2000KG capacity slider lift is specifically designed for semi-trailers (O4 semi-trailers) and wide chassis trucks. The system is controlled from the right side of the vehicle and features two separate control systems. The lift performs tilt movements automatically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Standard Slider Lift
  • Lift Capacity: 1500 / 2000 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 150 x 100 ST52
  • Platform Type: Aluminum
  • Platform Size: 2.200 x 1.700 mm / 2.300 x 1.700 mm / 2.400 x 1.800 mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 800mm
  • Maximum Lifting Height: 1300 mm
  • Maximum Lowering Height: 450 mm
  • Chassis Width: 1860 mm
  • Chassis Length: 1840 mm
  • Lift Weight: 365 kg
  • Platform Weight: 180 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 1150 - 1350 mm / 720 - 1020 mm
