STANDART LIFT

NDL 5009-500/750KG

It is designed for enclosed panel vans with a capacity of 500 or 750 KG. It features two separate control systems. The lift’s manual tilt movement allows for precise adjustments.

  • 500 / 750 KG Capacity Support
  • Dual Control System
  • Hydraulic Powerpack Power Source
  • Static Painted Aluminum Platform

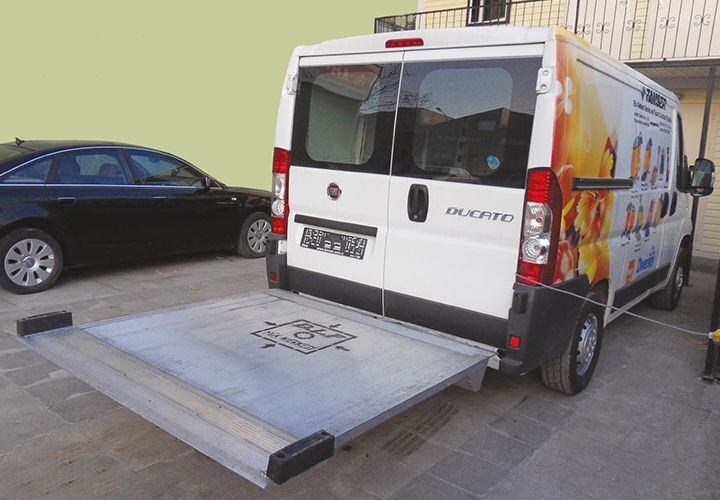

DLP-5009

ABOUT PRODUCT

Efficient and Reliable Lift for Panel Vans

The DLP 5009-500/750KG lift is designed for panel vans with a capacity of up to 750KG. With a durable hydraulic powerpack and dual control systems, this lift ensures both efficiency and safety.

  • Externally mounted for panel vans (Short Arm)
  • Hydraulic power from a 12V or 24V DC vehicle battery
  • Manufactured with 100x100 mm ST52 chassis profile
  • Aluminum platform dimensions: 1450 x 1550 mm / 1450 x 1600 mm
  • Oven-baked static paint for durability
  • Load arm length: 630mm
  • Maximum lift height: 850mm
  • Maximum lowering: 350mm
  • Chassis width: 450mm
  • Chassis length: 1290mm
  • Lift weight: 140kg
  • Platform weight: 65kg
  • Equipped with 2 lifting and 1 tilt cylinder
  • Includes 3 safety valves
  • Suspension arm maximum range: 880-1180mm
