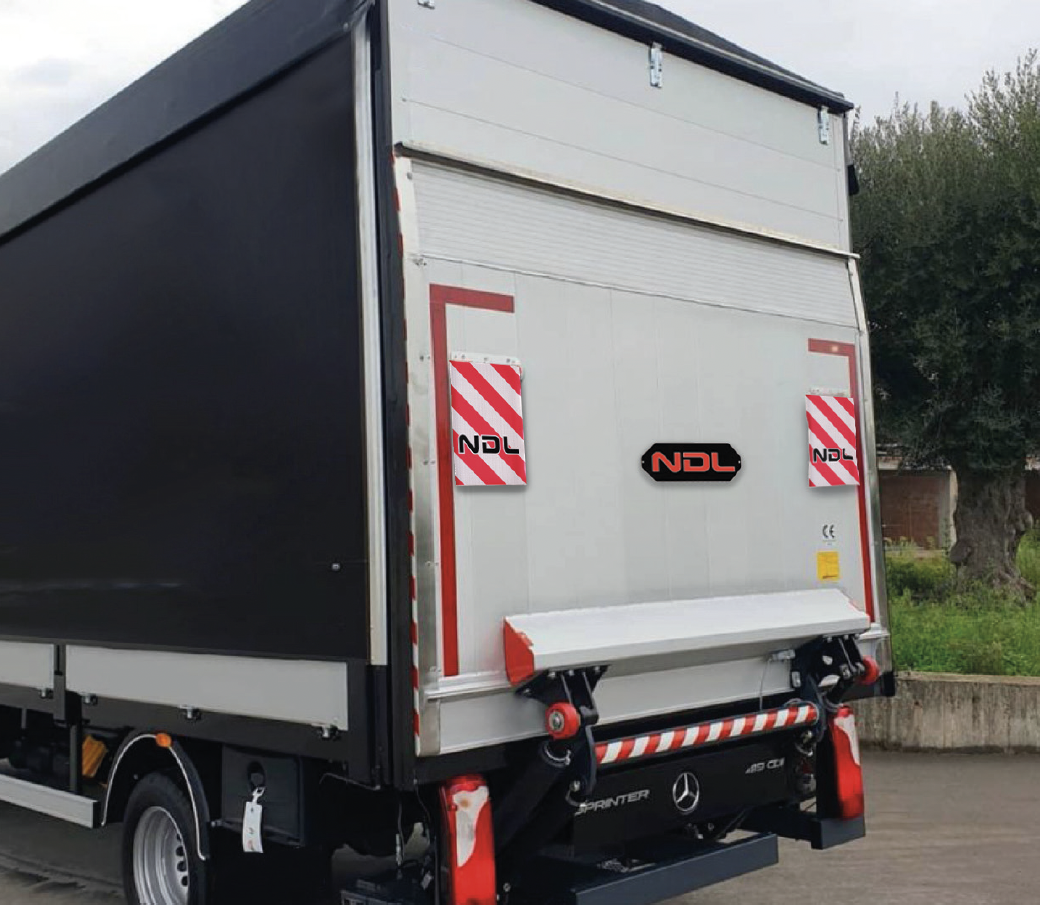

STANDART LIFT

NDL.5010-05 / 500 KG

Designed for light commercial vehicles, box-type vans, and vehicles with small wheel diameters, with a capacity of 500 kg. It has two separate control systems. Suitable for Sprinter, Crafter, Hyundai, Transit, Fuso, and similar light commercial vehicles.

  • 500 KG lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum platform
NDL YAKIN

ABOUT PRODUCT

High-Performance Lifting Solution

Our 500KG capacity lift is specifically designed for light commercial vehicles, box-type vans, and vehicles with small wheel diameters. Suitable for Sprinter, Crafter, Hyundai, Transit, Fuso, and similar vehicles. It features two separate control systems and operates hydraulically. The lift is powered by a hydraulic powerpack and operates on a vehicle battery (12V or 24V DC).

  • Lift Type: Light commercial vehicle, externally mounted, van model hanger bracket, short load arm
  • Lift Capacity: 500 KG
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: 100 x 100
  • Platform Type: Aluminum
  • Platform Size: According to the vehicle's dimensions
  • Paint Type: Baked-on static paint
  • Load Arm Length: 700mm
  • Maximum Lifting Height: 1150 mm
  • Maximum Lowering Height: 390 mm
  • Chassis Width: 650 mm
  • Chassis Length: 1.950 mm
  • Lift Weight: 175 kg
  • Platform Weight: 105 kg
  • Number of Cylinders: 2 lift cylinders + 2 tilt cylinders
  • Number of Safety Valves: 4
  • Maximum Hanger Arm Span: 820 - 1120 mm
