STANDART LIFTS
NDL 5013-500/750KG

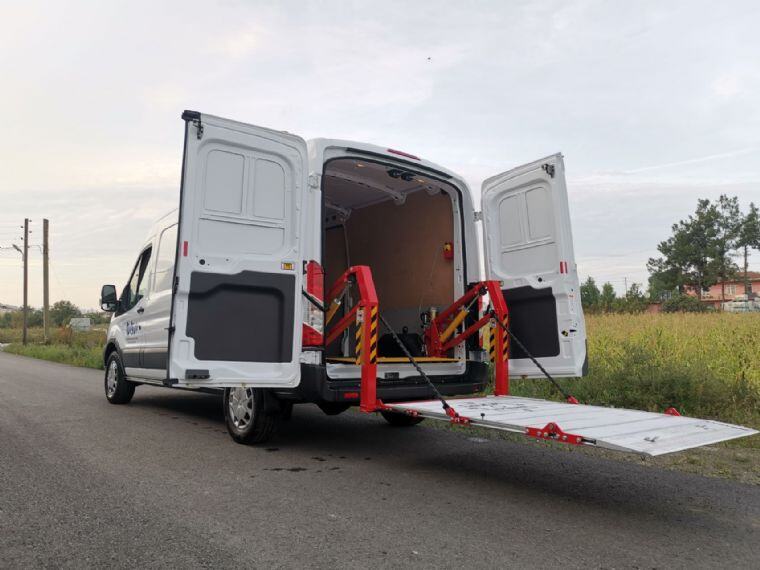

The NDL 5013-500/750KG lift is designed for trucks, vans, and enclosed panel vans with a capacity of 500 or 750 KG. It features two separate control systems and is equipped with a dual arm system for easy, safe, and practical installation inside the vehicle.
- Dual control systems for versatile operation
- Easy and secure installation inside the vehicle
- High capacity of 500/750 KG suitable for various vehicle types
- Hydraulic powerpack for efficient lifting



ABOUT PRODUCT
High-Performance Lifting Solution
The NDL 5013-500/750KG lift offers reliable and robust lifting capabilities for trucks, vans, and panel vans. With its user-friendly design and advanced features, it ensures maximum efficiency and safety during operation.
- Lift Type: Chassis-mounted lift
- Lift Capacity: 500 / 750 KG
- Power Source: Vehicle battery 12 volt or 24 volt DC
- Power Unit: Hydraulic powerpack
- Chassis Profile: 80 x 80
- Platform Type: Aluminum
- Platform Sizes: 810 * 1450 mm / 1250 * 1700 mm / 1300 * 1900 mm
- Paint Type: Oven-baked static paint
- Arm Length: 990mm
- Max. Lift Height: 900mm
- Max. Lowering Height: 900mm
- Chassis Width: 335mm
- Chassis Length: 1500mm
- Lift Weight: 130kg
- Platform Weight: 30kg
- Number of Cylinders: 2 Lift Cylinders
- Number of Safety Valves: 1
