SPECIAL PURPOSE LIFTS

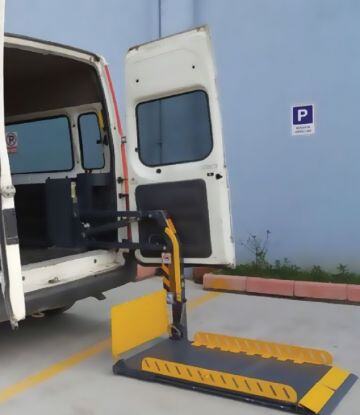

NDL 7002

The NDL single-arm wheelchair lift is designed for minibuses and buses. It can be mounted on the side or rear door of the vehicle. Automatic lift functions with manual platform folding. The lift can be manually raised with a hand pump if it malfunctions, and lowered easily with a manual safety valve release. The lift includes warning lights, an alarm, an emergency stop button, and necessary safety valves.

  • 350 kg lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum and steel platform
ndl 7002

ABOUT PRODUCT

High-Performance Lifting Solution

The NDL single-arm wheelchair lift is specifically designed for minibuses and buses. It can be mounted on the side or rear door of the vehicle. The lift has automatic functions for lowering, raising, and roll stop. The platform folds manually. If the lift malfunctions, it can be manually raised with a hand pump and lowered easily with a manual safety valve release. The lift includes warning lights, an alarm, an emergency stop button, and necessary safety valves.

  • Lift Type: Single-Arm Wheelchair Lift
  • Lift Capacity: 350 kg
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: Mounted to vehicle floor
  • Platform Type: Aluminum and steel
  • Platform Size: 1.260 x 800mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 920-650mm
  • Maximum Lifting Height: 700mm
  • Maximum Lowering Height: 700mm
  • Chassis Width: 320x515mm
  • Chassis Length: 920mm
  • Lift Weight: 110kg
  • Number of Cylinders: 1 Cylinder
