SPECIAL PURPOSE LIFTS

NDL 7005

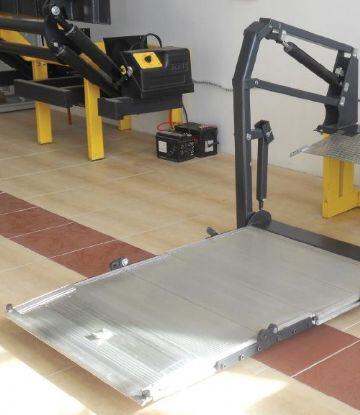

The NDL double-arm wheelchair lift is designed for minibuses and buses. It is mounted at the rear door of the vehicle. The lift functions automatically for lowering, raising, and roll stop. The platform folds and unfolds automatically. If the lift malfunctions, it can be manually raised with a hand pump and lowered easily with a manual safety valve release. The lift includes warning lights, a sound alarm, an emergency stop button, and necessary safety valves.

  • 350 kg lifting capacity
  • Powered by a hydraulic powerpack
  • Operates on vehicle battery (12V or 24V DC)
  • Aluminum and steel platform
NDL 7005

ABOUT PRODUCT

High-Performance Lifting Solution

The NDL double-arm wheelchair lift is specifically designed for minibuses and buses. It is mounted at the rear door of the vehicle. The lift functions automatically for lowering, raising, and roll stop. The platform folds and unfolds automatically. If the lift malfunctions, it can be manually raised with a hand pump and lowered easily with a manual safety valve release. The lift includes warning lights, a sound alarm, an emergency stop button, and necessary safety valves.

  • Lift Type: Double-Arm Automatic Wheelchair Lift
  • Lift Capacity: 350 kg
  • Power Source: Vehicle battery (12V or 24V DC)
  • Power Unit: Hydraulic powerpack
  • Chassis Profile: Mounted to vehicle floor
  • Platform Type: Aluminum and steel
  • Platform Size: 1.260 x 800mm
  • Paint Type: Baked-on static paint
  • Load Arm Length: 950mm
  • Maximum Lifting Height: 750 - 850 mm
  • Maximum Lowering Height: 700 mm
  • Chassis Width: 335 x 1.700mm
  • Chassis Length: 1.500 mm
  • Lift Weight: 130kg
  • Platform Weight: 130kg
  • Number of Cylinders: 2 Cylinders
  • Number of Safety Valves: 2
